1 Sets, Relations, and Languages

说明

本文档仅涉及部分内容，仅可用于复习重点知识

1 Sets

就是离散数学学的那些

A set is a collection of objects. 例如，四个字母 a, b, c, d 的 collection 是一个 set，常记作 \(L = \lbrace a,b,c,d \rbrace\)。构成一个 set 的 objects 被称为 elements / members. 例如，b 是 \(L\) 的一个 element，记作 \(b \in L\)，称为 b is in \(L\) 或 \(L\) contains b. z 不是 \(L\) 的 element，记作 \(z \notin L\)

两个集合 equal 当且仅当它们拥有相同的元素（互异性、无序性）

• singleton：单元素集合 / 单例
• empty set：空集，\(\emptyset\)

A set \(A\) is a subset of a set B，记作 \(A \subseteq B\)

proper subset：真子集，记作 \(A \subset B\)

\(A \subseteq B, B \subseteq A \iff A = B\)

• union：并集 \(\cup\)
• intersection：交集 \(\cap\)
• difference：差集 \(A - B\)

集合运算律

1. Idempotency
2. Commutativity
3. Associativity
4. Distributivity

5. Absorption

   1. \((A \cup B)\cap A = A\)

   2. \((A \cap B)\cup A = A\)

6. DeMorgan's laws

   1. \(A - (B \cup C) = (A - B) \cap (A - C)\)
   2. \(A - (B \cap C) = (A - B) \cup (A - C)\)

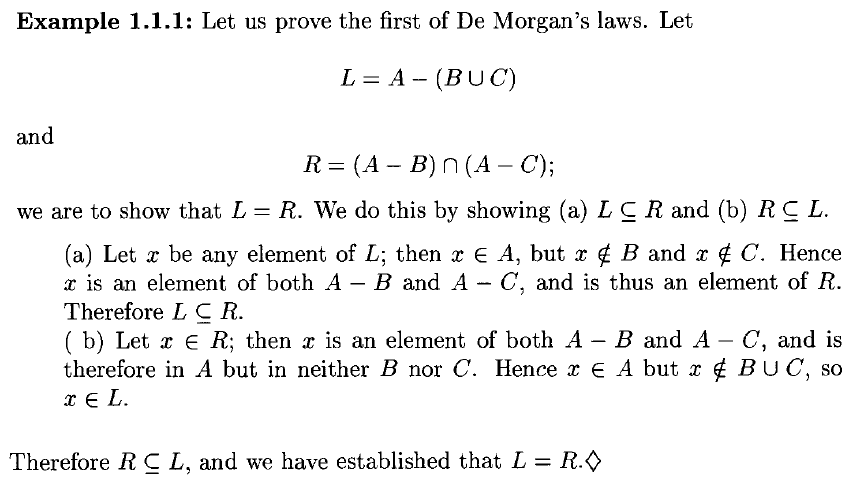

证明 De Morgan's laws

Two sets are disjoint if they have no element in common

如果 \(S\) 是任意 sets 的 set，则集合 \(\bigcup S\) 的 elements 是 \(S\) 中所有 sets 的 elements

例如，\(S = \lbrace \lbrace a,b \rbrace,\lbrace b,c \rbrace,\lbrace c,d \rbrace\rbrace\)，\(\bigcup S = \lbrace a,b,c,d \rbrace\)

相似的，还有 \(\bigcap S\)

集合 \(A\) 所有 subsets 的 collection 也是一个 set，称为 power set of \(A\)，记作 \(2^A\)

例如，\(2^{\lbrace c,d\rbrace} = \lbrace \lbrace c,d\rbrace,\lbrace c\rbrace,\lbrace d\rbrace,\emptyset \rbrace\)

\(\Pi\) is a partition of A if \(\Pi\) is a set of subsets of A such that

1. \(\emptyset \notin \Pi\)
2. distinct members of \(\Pi\) are disjoint (\(\forall S, T \in \Pi, S \not ={T}, S \cap T = \emptyset\))
3. \(\bigcup \Pi = A\)

例如，\(\lbrace \lbrace a,b \rbrace,\lbrace c \rbrace,\lbrace d \rbrace\rbrace\) is a partition of \(\lbrace a,b,c,d\rbrace\)

2 Relations and Functions

ordered pair：顺序对 components：顺序对的元素

1. \((a,b)\) 和 \((b,a)\) 是 different
2. 顺序对的两个 components 可以不一样

The Cartesian product of two sets \(A\) and \(B\), denoted by \(A \times B\), is the set of all ordered pairs \((a,b)\) with \(a \in A\) and \(b \in B\)

A binary relation on two sets \(A\) and \(B\) is a subset of \(A \times B\)

一般的，\((a_1, \cdots, a_n)\) is an ordered tuple（元素不一定互不相同）

• ordered 2-tuples = ordered pairs
• ordered 3-tuples = ordered triples
• ordered 4-tuples = ordered quadruples
• ordered 5-tuples = ordered quintuples
• ordered 6-tuples = ordered sextuples

sequence：更通用的术语，指一个具有特定长度 n 的有序元组

n-fold Cartesian product：n 重笛卡尔积

\(A\) 自身的 n-fold Cartesian product 记作 \(A^n\)

n-ary relation on sets \(A_1, \cdots, A_n\) is a subsets of \(A_1 \times \cdots \times A_n\)

• 1-ary = unary
• 2-ary = binary
• 3-ary = ternary

A function from a set \(A\) to a set \(B\) is a binary relation \(R\) on \(A\) and \(B\) with the following special property: for each element \(a \in A\), there is exactly one ordered pair in \(R\) with first component \(a\)

不能一对多，可以多对一

\(f: A \mapsto B\)

1. call \(A\) the domain of \(f\)
2. \(f(a)\) is called the image of \(a\) under \(f\)

3. \(f(a_1, \cdots, a_n) = b\), call \(a_i\) the arguments of \(f\), call \(b\) the corresponding value of \(f\)

4. one-to-one：单射（这个英文称呼感觉有点歧义）

5. \(f: A \mapsto B\) is onto \(B\) if each element of \(B\) is the image under \(f\) of some element of \(A\). 满射
6. \(f: A \mapsto B\) is a bijection between \(A\) and \(B\) if it is both one-to-one and onto \(B\). 一一对应 / 双射

The inverse of a binary relation \(R \subseteq A \times B\), denoted \(R^{-1} \subseteq B \times A\), is the relation \(\lbrace (b,a):(a,b) \in R \rbrace\)

\(Q \circ R = QR = \lbrace (a,b): \exist c\ (a,c) \in Q, (c,b) \in R \rbrace\)

\((f \circ g)(a) = f(g(a))\)

3 Special Types of Binary Relations

relation 可以用 directed graph 来表示

• node
• edge
• path：length（顶点数），cycle

例如：\(R=\lbrace (a,b),(b,a),(a,d),(d,c),(c,c),(c,a) \rbrace\)

A relation \(R \subseteq A \times A\) is

1. reflexive if \(\forall a \in A,(a,a) \in R\)
2. symmetric if \((a,b) \in R \implies (b,a) \in R\)
3. antisymmetric if \((a,b) \in R \wedge a \not ={b} \implies (b,a) \notin R\)
4. transitive if \((a,b) \in R, (b,c) \in R \implies (a,c) \in R\)

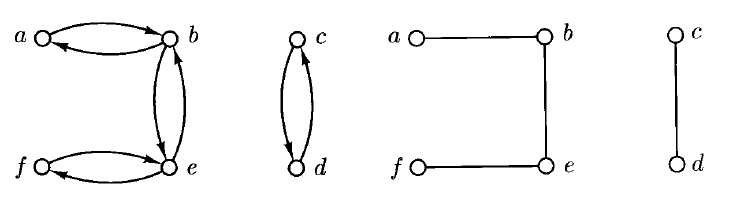

一个不存在形如 \((a,a)\) 对的 symmetric relation 称作 undirected graph，简称 graph，例如：

一个 relation 可以既不是 symmetric 也不是 antisymmetric

一个 relation 如果是 reflexive，symmetric，transitive 的，称为 equivalence relation

The clusters of an equivalence relation are called its equivalence classes. \([a] = \lbrace b:(a,b) \in R \rbrace\)

Let \(R\) be an equivalence relation on a nonempty set \(A\). Then the equivalence classes of \(R\) constitute a partition of \(A\)

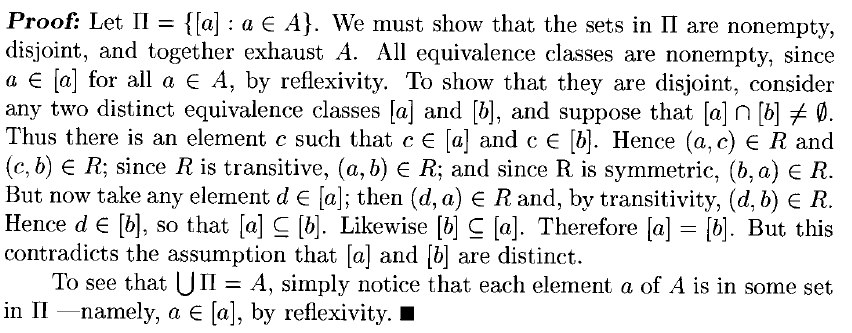

proof

一个 relation 如果是 reflexive，antisymmetric， transitive 的，称为 partial order

如果 \(R \subseteq A \times A\) 是 partial order，则一个 element \(a \in A\) 是 minimal 如果满足条件：当且仅当 \(a = b\)，有 \((b,a) \in R\)

一个 partial order \(R \subset A \times A\) 是 total order if \(\forall a,b \in A\)，either \((a, b ) \in R\) or \((b,a) \in R\)

4 Finite and Infinite Sets

call two sets \(A\) and \(B\) equinumerous 当且仅当存在一个双射 \(f: A \rightarrow B\)

等势关系是一种等价关系

我们称一个 set 是 finite 如果它与形如 \(\lbrace 1,2,\cdots,n \rbrace,n \in N\) 的集合等势

如果 \(n = 0\)，那么 \(\lbrace 1,2,\cdots,n \rbrace\) 是 \(\emptyset\)，\(\emptyset\) 和 \(\emptyset\) 等势，因此 \(\emptyset\) 是 finite

如果 \(A\) 与 \(\lbrace 1,2,\cdots,n \rbrace\) 等势，则称 cardinality of \(A\) is \(n\), \(|A| = n\)

一个 set infinite 如果它不 finite

A set is said to be countably infinite if ti is equinumerous with \(N\)

A set is said to be countable if it is finite or countably infinite

A set that is not countable is uncountable

S is an uncountable set \(\iff |S| > |N|\)

任意有限个可数无限集的并集仍然是可数无限的

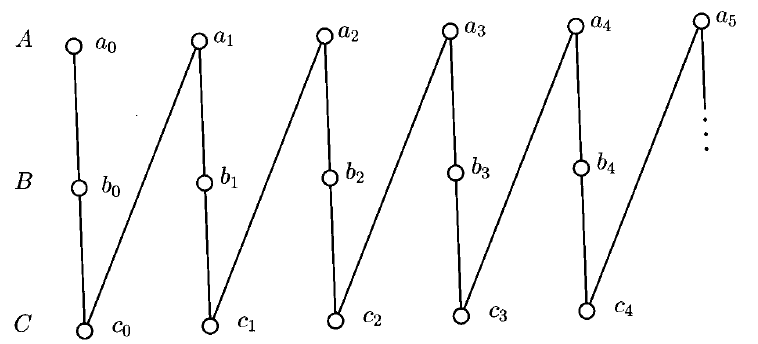

Dovetailing 证明 \(A \cup B \cup C\) countably infinite

鸽尾法

\(A = \lbrace a_0,a_1,\cdots\rbrace\), \(B = \lbrace b_0,b_1,\cdots\rbrace\), \(C = \lbrace c_0,c_1,\cdots\rbrace\)

因此，\(A \cup B \cup C\) 的每个元素都能分配到一个唯一的自然数下标

可数无限个可数无限集的并集也是可数无限的

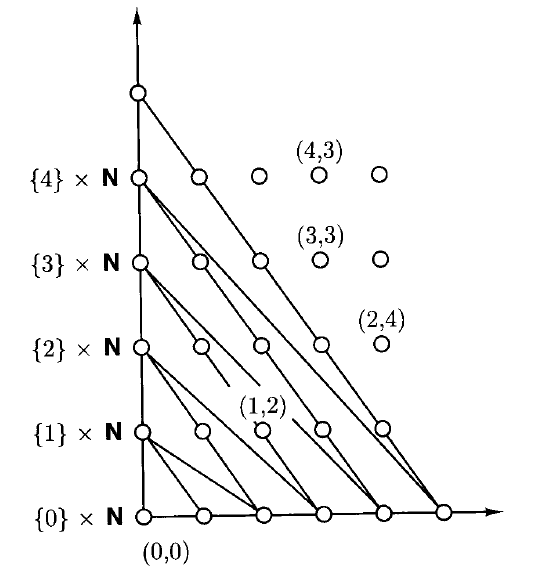

证明 \(N \times N\) countably infinite

\(N \times N\) 是 \(\lbrace 0\rbrace \times N\), \(\lbrace 1\rbrace \times N\) …… 这些集合的并集，因此它是一个可数无限个可数无限集的并集

\((i,j)\) 对是第 \(m\) 次访问的，\(m = \dfrac{1}{2}[(i+j)^2 + 3i +j]\)，因此 \(f(i,j) = \dfrac{1}{2}[(i+j)^2 + 3i +j]\) 就是一个 bijection 从 \(N \times N\) 到 \(N\)

\(|R| > |N|\), \(|R| = |(0,1)|\)

\(|N| = \aleph_0\), \(|R| = \aleph_1\)

\(\aleph_0 < \aleph_1\)

5 Three Fundamental Proof Techniques

5.1 The Principle of Mathematical Induction

数学归纳法

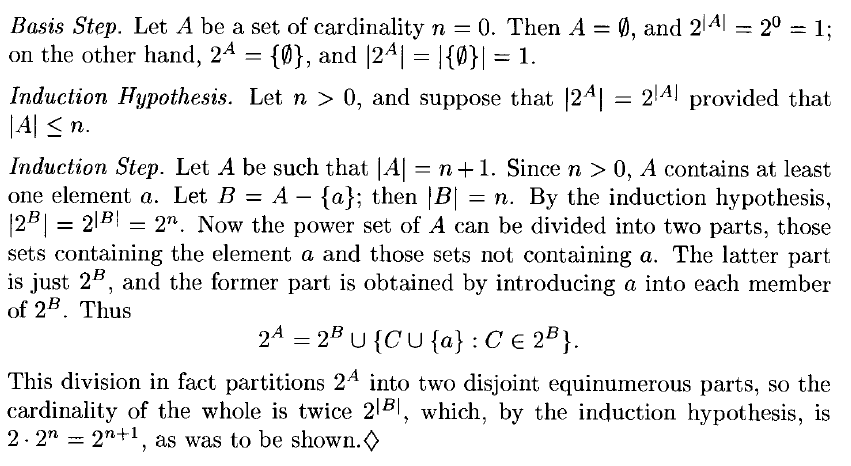

例：对于 finite set \(A\)，有 \(|2^A| = 2^{|A|}\)

5.2 The Pigeonhole Principle

鸽巢原理

If \(A\) and \(B\) are finite sets and \(|A| > |B|\), then there is no one-to-one function from \(A\) to \(B\)

将 n + 1 个鸽子放到 n 个鸽巢里，至少有 1 个鸽巢中有至少 2 个鸽子

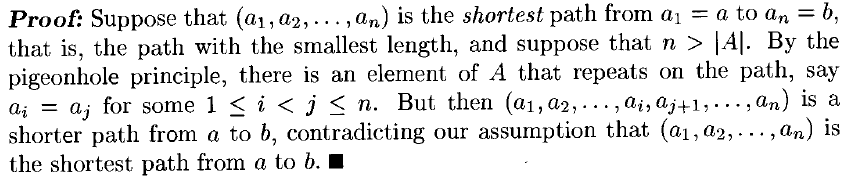

Let \(R\) be a binary relation on a finite set \(A\), and let \(a,b\in A\). If there is a path from \(a\) to \(b\) in \(R\), then there is a path of length at most \(|A|\)

5.3 The Diagonalization Principle

对角化原理

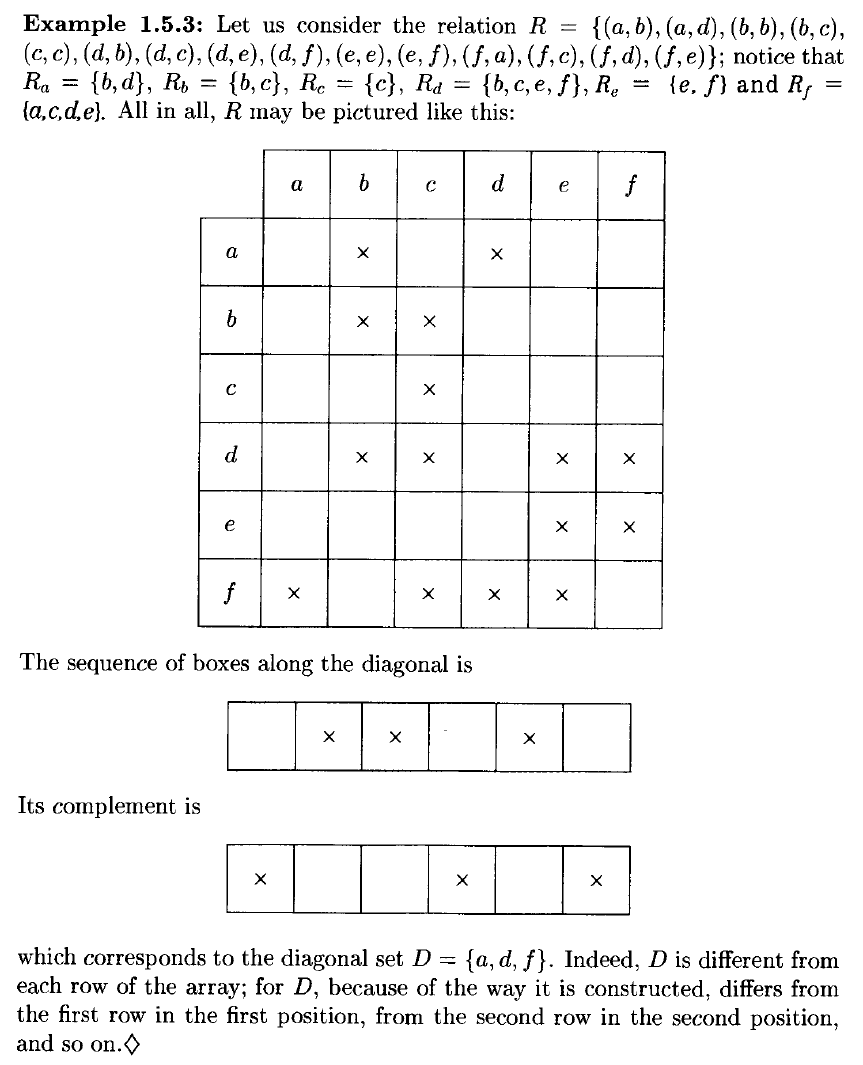

Let \(R\) be a binary relation on a set \(A\), and let \(D\), the diagonal set for \(R\), be \(\lbrace a:a \in A\ and\ (a,a) \notin R \rbrace\). For each \(a \in A\), let \(R_n = \lbrace b:b \in A\ and\ (a,b) \in R \rbrace\). Then \(D\) is distinct from each \(R_a\)

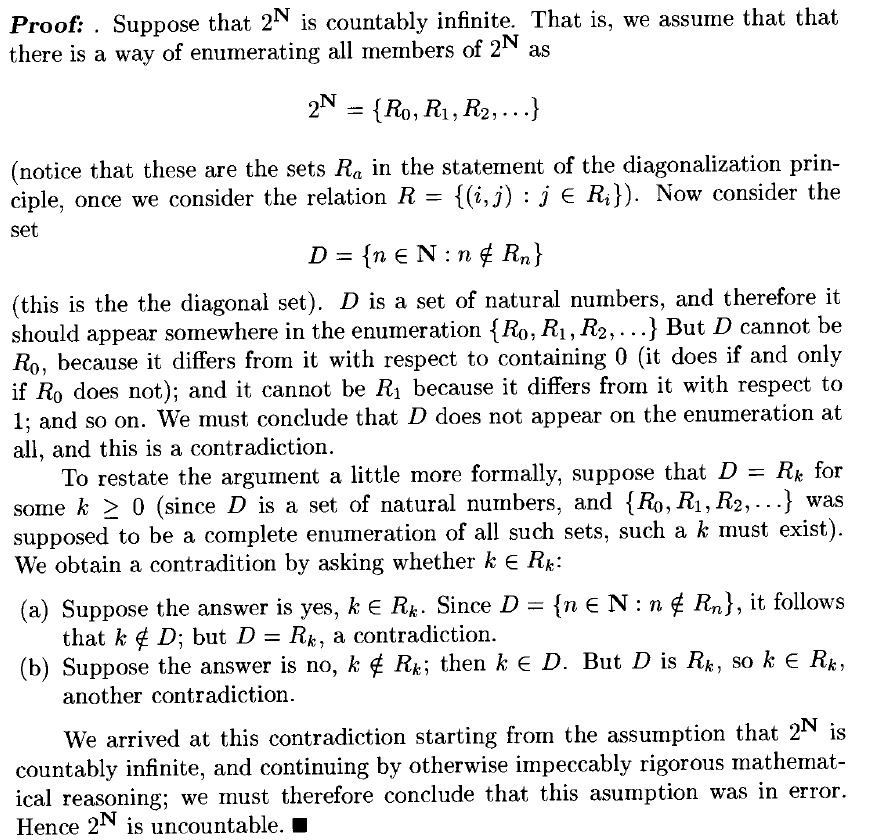

The set \(2^N\) is uncountable

6 Closures and Algorithms

Let \(R \subseteq A^2\) be a directed graph defined on a set \(A\). The reflexive transitive closure of \(R\) is the relation

\(R^* = \lbrace (a,b):a,b\in A\ \text{and there is a path from}\ a\ \text{to}\ b\ \text{in}\ R \rbrace\)

闭包：给一个原始对象添加最少的额外元素，使其具备某个我们期望的性质

The order of \(f\), denoted \(O(f)\)

\(g(n) \in O(f(n)) \iff\) 存在 \(c>0, d>0\)，对于所有 \(n\in N\)，都有 \(g(n) \leqslant c \cdot f(n) + d\)

如果 \(f \in O(g)\), \(g \in O(f)\)，则记作 \(f \asymp g\)（两个函数的增长率相同）

closure property：描述了一个集合对于某种操作或规则的“完备性”

如果在集合中选取一些元素，并且根据规则这些元素可以“产生”或“决定”另一个元素，那么这个被产生的元素也必须已经在集合里面了

Let \(P\) be a closure property defined by relations on a set \(D\), and let \(A\) be a subset of \(D\). Then there is a unique minimal set \(B\) that contains \(A\) and has property \(P\)

就是说，某个集合关于某个性质的闭包是一定存在的

7 Alphabets and Languages

empty string is denoted by \(e\)

The set of all strings, including the empty string, over an alphabet \(\Sigma\) is denoted by \(\Sigma^*\)

concatenation：\(x \circ y\) or simply \(xy\), is the string \(x\) followed by the string \(y\)

• suffix：后缀
• prefix：前缀

\(w^i = \begin{cases} w^0 = e\\ w^{i+1}=w^i \circ w & \text{for each } i \geqslant 0 \end{cases}\)

the reversal of a string \(w\), denoted by \(w^R\)

\(w = ua, a \in \Sigma \implies w^R = au^R\)
\((wx)^R = x^Rw^R\)

any subset of \(\Sigma^*\) will be called a language

\(L = \lbrace w \in \Sigma^*: w \text{ has property } P \rbrace\)

\(L_1L_2 = \lbrace xy: x \in L_1\ and\ y \in L_2\rbrace\)

if \(\Sigma\) is a finite alphabet, then \(\Sigma^*\) is countably infinite set

因为可以按照 lexicographic 进行枚举

the complement of \(A\): \(\bar{A}\)

Kleene star of a language \(L\), denoted by \(L^*\)

\(L^* = \lbrace w\in \Sigma^*: w = w_1 \circ \cdots \circ w_k \text{ for some } k \geqslant 0 \text{ and some } w_1, \cdots , w_k \in L \rbrace = \bigcup^\infin_{i=0} L^i\)

例如：\(L = \lbrace 01,1,100\rbrace\)，\(110001110011 \in L^*\)

之前遇到的 \(\Sigma^*\) 也是同样的意思

\(\emptyset^* = \lbrace e\rbrace\)
\(L_1 \subseteq L_2 \implies L_1^* \subseteq L_2^*\)
\((L^*)^* = L^*\)
\(L\emptyset = \emptyset L = \emptyset\)

\(L^+ = LL^* = \lbrace w\in \Sigma^*: w = w_1 \circ \cdots \circ w_k \text{ for some } k \geqslant 1 \text{ and some } w_1, \cdots , w_k \in L \rbrace = \bigcup^\infin_{i=1} L^i\)

在 concatenation 运算下，\(L^+\) 可以看作是 \(L\) 的 closure。\(L^+\) 是最小的包含 \(L\) 且包含 \(L\) 中任意字符串的所有连接结果的 language

8 Finite Representations of Languages

regular expression

Let \(L = \lbrace w \in \lbrace 0,1\rbrace^*: w \text{ has two or three occurrences of 1, the first and second of which are not consecutive} \rbrace\). 这个 language 可以被如下描述：

\(\lbrace 0\rbrace^* \circ \lbrace 1 \rbrace \circ\lbrace 0\rbrace^* \circ\lbrace 0 \rbrace\circ \lbrace 1 \rbrace\circ\lbrace 0 \rbrace^* \circ ((\lbrace 1\rbrace\circ\lbrace 0\rbrace^*) \cup \emptyset^*)\)

可以简化为：

\(L = 0^*10^*010^*(10^* \cup \emptyset^*)\)

像这种表示方法称为 regular expression（正则表达式）

The regular expressions over an alphabet \(\Sigma^*\) are all strings over the alphabet \(\Sigma \cup \lbrace (,),\varnothing, \cup, *\rbrace\) that can be obtained as follows:

1. \(\varnothing\) and each member of \(\Sigma\) is a regular expression
2. if \(\alpha\) and \(\beta\) are regular expressions, then so is \((\alpha\beta)\)
3. if \(\alpha\) and \(\beta\) are regular expressions, then so is \((\alpha\cup\beta)\)
4. if \(\alpha\) is a regular expression, then so is \(\alpha^*\)
5. nothing is a regular expression unless it follows from (1) through (4)

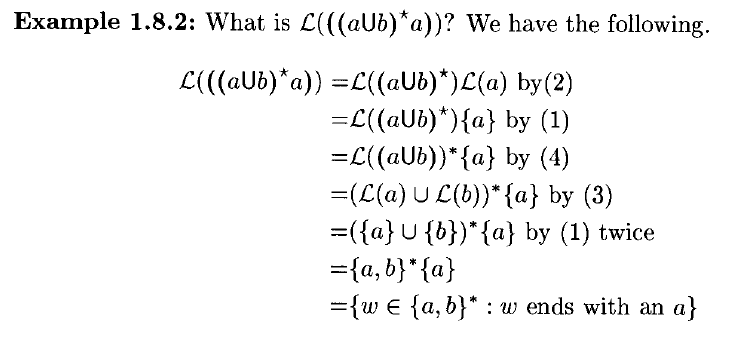

函数 \(\mathcal{L}\)，它接收一个正则表达式字符串作为输入，输出这个表达式所代表的字符串集合（即语言）

1. \(\mathcal{L}(\varnothing) = \emptyset\), and \(\mathcal{L}(a) = \lbrace a\rbrace\) for each \(a \in \Sigma\)
2. if \(\alpha\) and \(\beta\) are regular expressions, then \(\mathcal{L}((\alpha\beta)) = \mathcal{L}(\alpha)\mathcal{L}(\beta)\)
3. if \(\alpha\) and \(\beta\) are regular expressions, then \(\mathcal{L}((\alpha\cup\beta)) = \mathcal{L}(\alpha)\cup\mathcal{L}(\beta)\)
4. if \(\alpha\) is a regular expression, then \(\mathcal{L}(\alpha^*) = \mathcal{L}(\alpha)^*\)

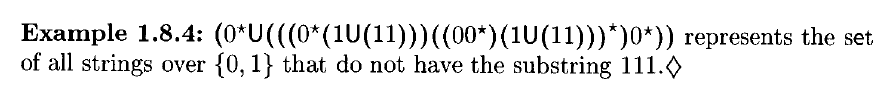

可以简写成 \(0^*\cup 0^*(1\cup 11)(00^*(1\cup 11))^*0^*\)
