5 Binomial Queues¶
说明
- 本文档仅涉及部分内容，仅可用于复习重点知识
- 本文档部分图片来源于教学课件
二项队列
定义¶
二项队列是一群 heap 的集合，每个 heap 都是一个二项队列
\(B_k\) 是将一个 \(B_{k-1}\) 连接到另一个 \(B_{k-1}\) 的根结点上形成的
二项队列类比二进制数
PTA 5.1
Which of the following binomial trees can represent a binomial queue of size 42?
A. \(B_0\ B_1\ B_2\ B_3\ B_4\ B_5\)
B. \(B_1\ B_3\ B_5\)
C. \(B_1\ B_5\)
D. \(B_2\ B_4\)
答案
B
\(42 = 101010\)
整个二项队列放在一个数组中，每个位置放相应的 heap，heap 用 left-child-next-sibling 实现
findmin¶
最小值在其中一个根结点上
\(T = O(\log N)\)
但是通过一些手段可以将时间变为 \(T = O(1)\)，比如我们可以“记录”最小值结点，每次变动的时候更新“记录”，这样每次找的时候就 \(O(1)\) 了

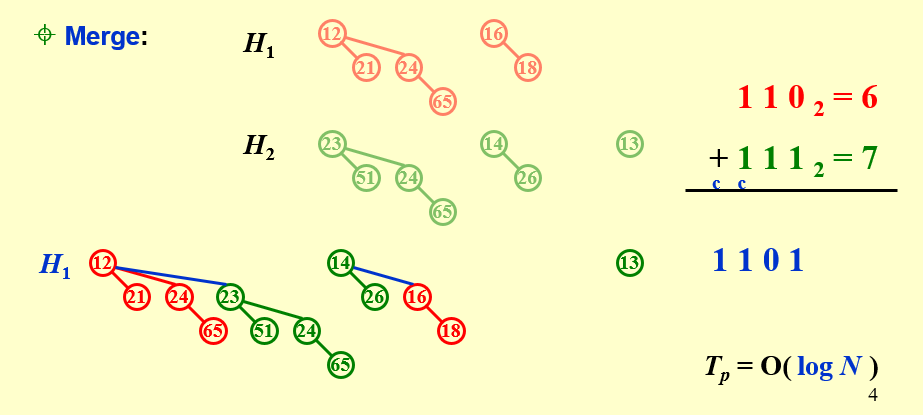

merge¶
类比二进制加法
PTA 5.3
Merge the two binomial queues in the following figure. Which one of the following statements must be FALSE?
A. there are two binomial trees after merging, which are \(B_2\) and \(B_4\)
B. 13 and 15 are the children of 4
C. if 23 is a child of 2, then 12 must be another child of 2
D. if 4 is a child of 2, then 23 must be another child of 2
答案
D
case 1:
case 2:
insert¶
当作 merge 处理
deletemin¶
- 找到 min 所在的 heap，剩下的 heap 当作 H'
- 删除 min 结点后，该 heap 会分成一个新的二项队列 H''
- 合并 H' 和 H''
PTA 5.4
Delete the minimum number from the given binomial queues in the following figure. Which one of the following statements must be FALSE?
A. there are two binomial trees after merging, which are \(B_1\) and \(B_2\)
B. 11 and 15 can be the children of 4
C. 29 can never be the root of any resulting binomial tree
D. if 29 is a child of 4, then 15 must be the root of \(B_1\)
答案
C
case 1:
case 2:
摊还分析¶
N 个元素的二项队列可以通过 N 次 insert 形成，共 \(T = O(N)\) $$ T_{amortized} = O(1) $$
aggregate¶
potential¶
PTA 5.2
For a binomial queue, __ takes a constant time on average.
A. merging
B. find-max
C. delete-min
D. insertion
答案
D
insert 摊还时间为 O(1)，平均时间也为 O(1)
