4 Leftist Heaps and Skew Heaps¶
说明
- 本文档仅涉及部分内容，仅可用于复习重点知识
- 本文档部分图片来源于教学课件
1 Leftist Heaps¶
左式堆
定义 null path length，\(Npl(X)\) 是从 X 至一个没有孩子的结点的路径的最短长度，规定 \(Npl(NULL) = -1\)
定义¶

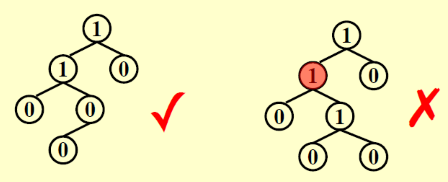

左式堆具有以下性质：
- 对于每个结点 X，X 左孩子的 Npl 值大于等于 X 右孩子的 Npl 值
定理
一个左式堆，若其 right path 上有 r 个结点，则该左式堆一定至少有 \(2^r - 1\) 个结点
merge¶
递归实现¶

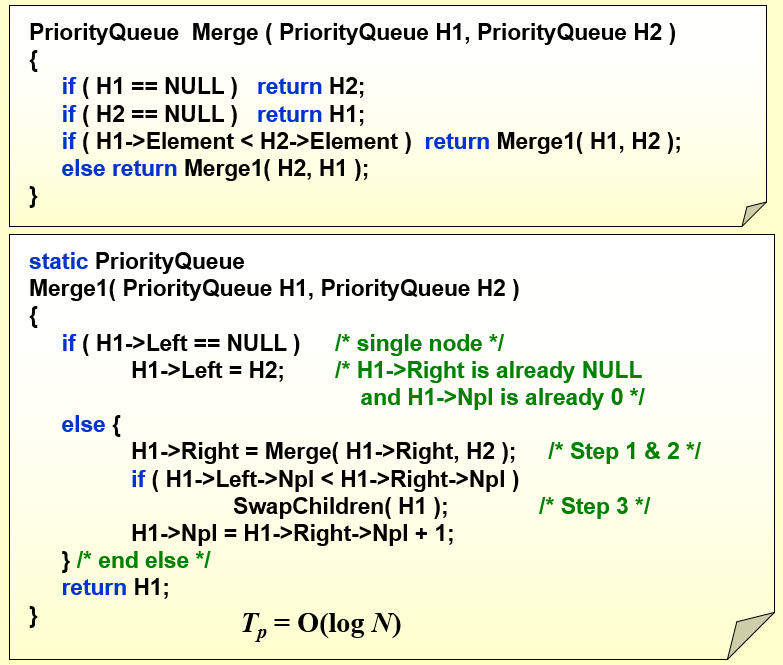

recursive version

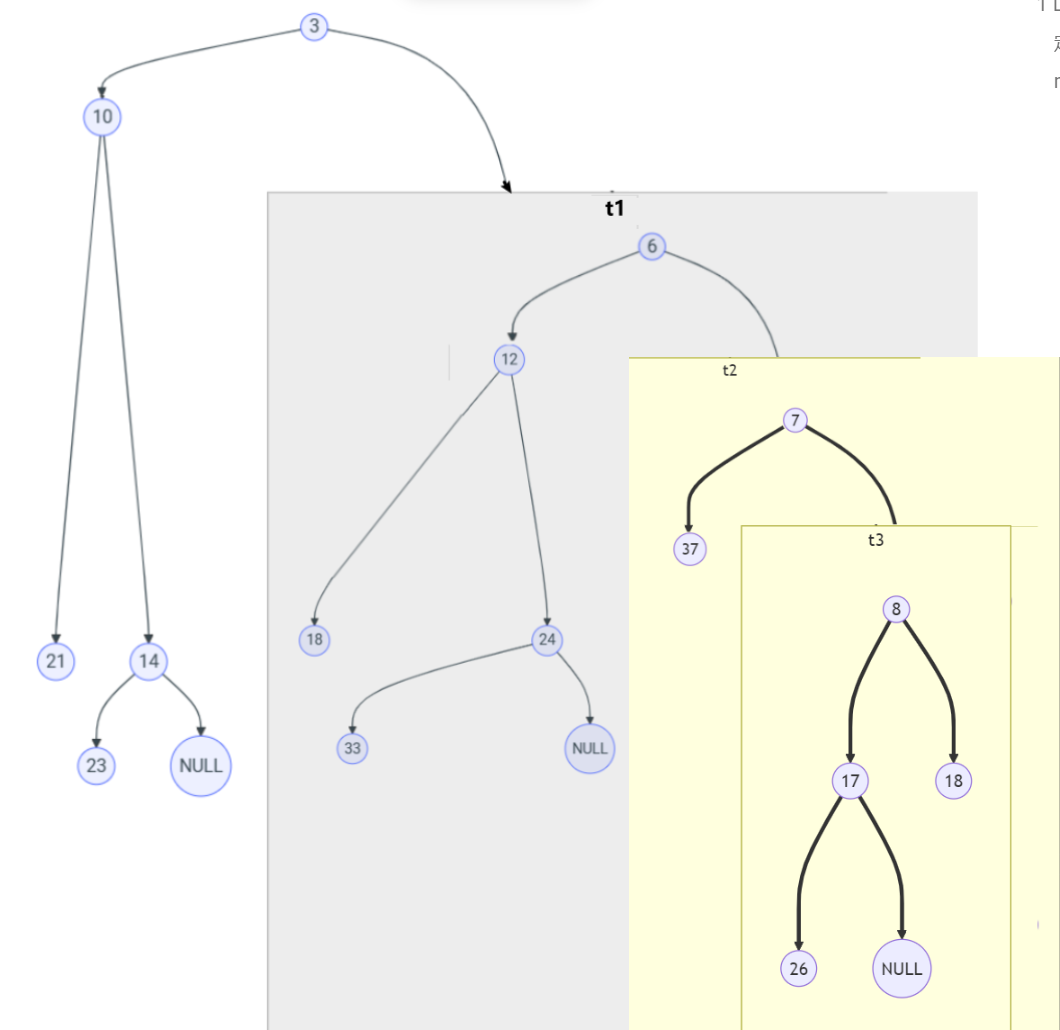

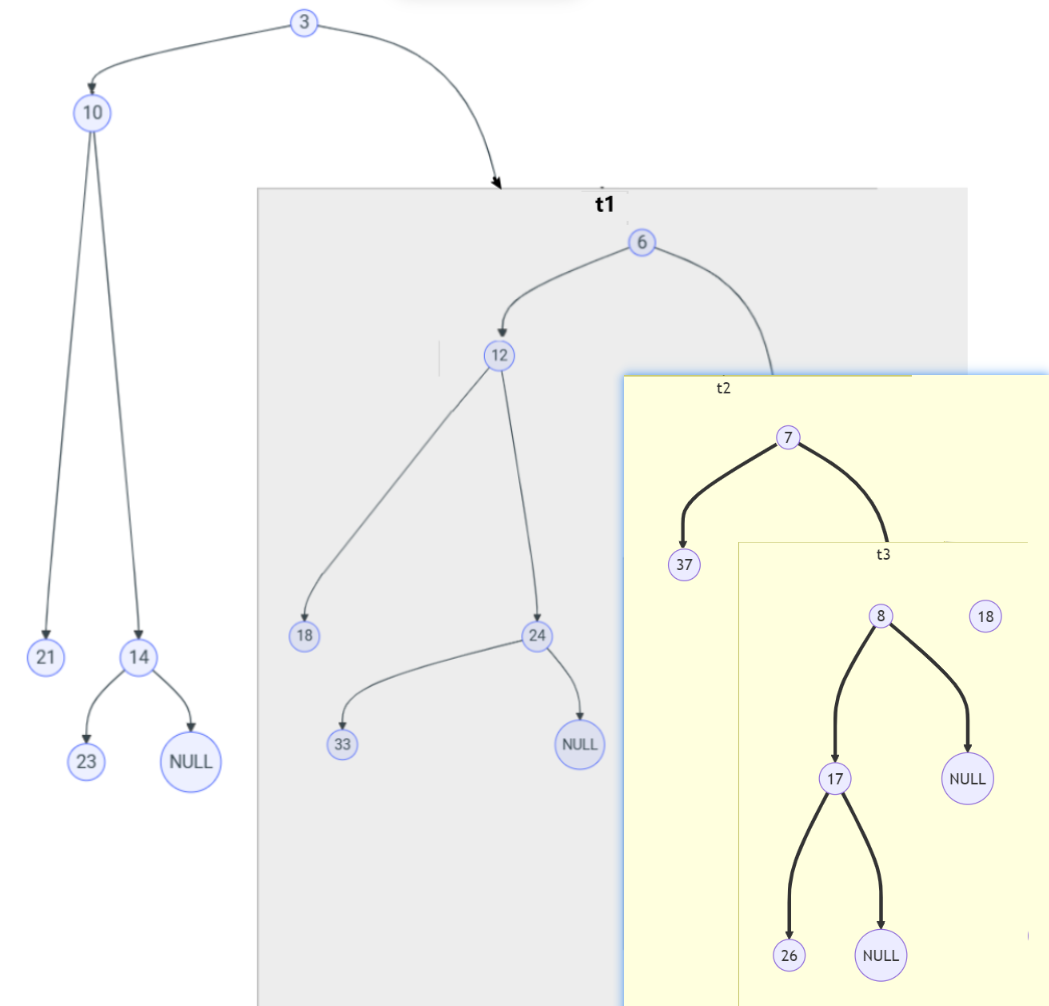

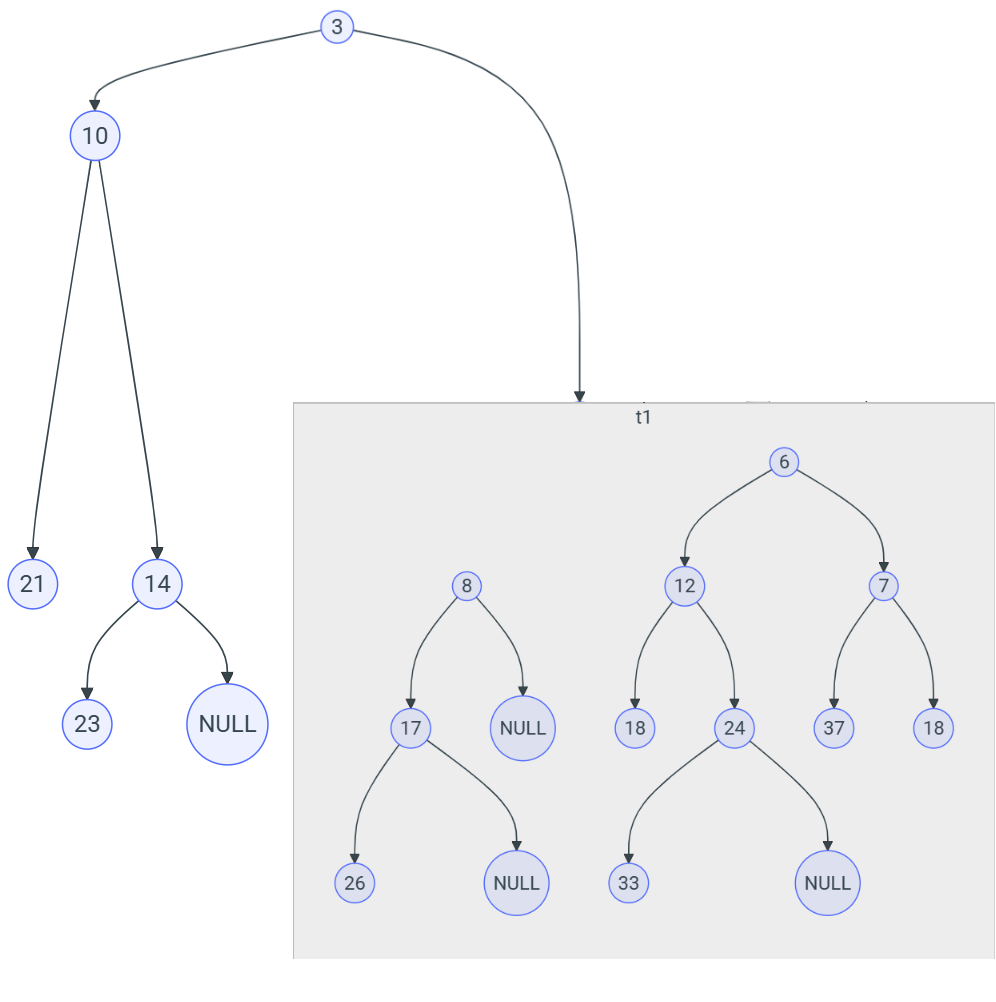

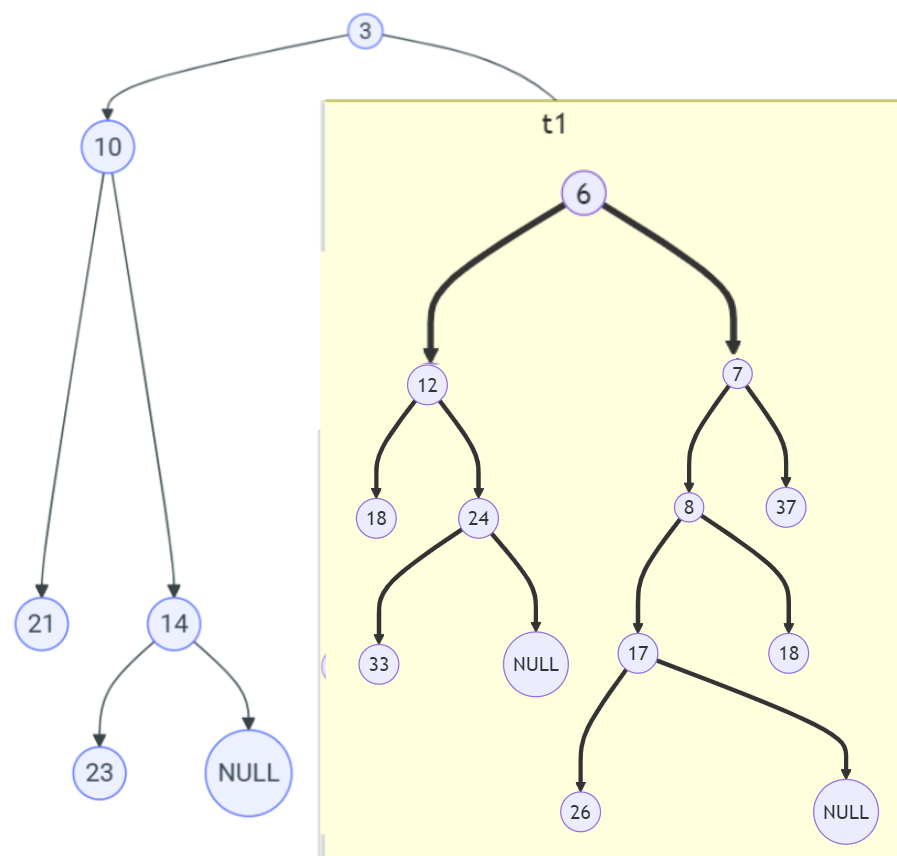

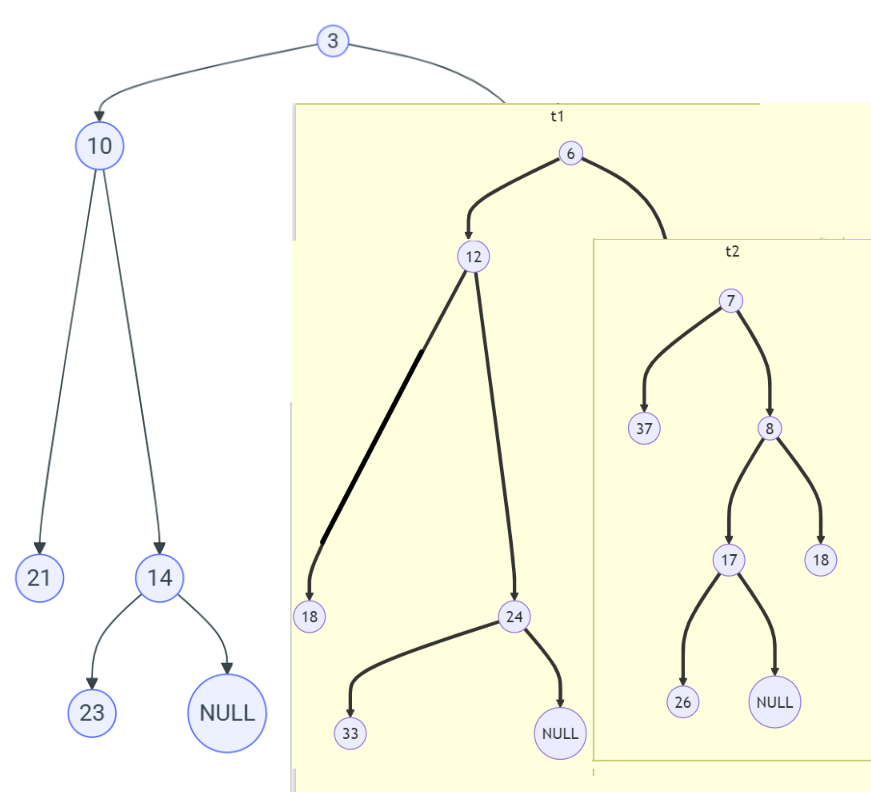

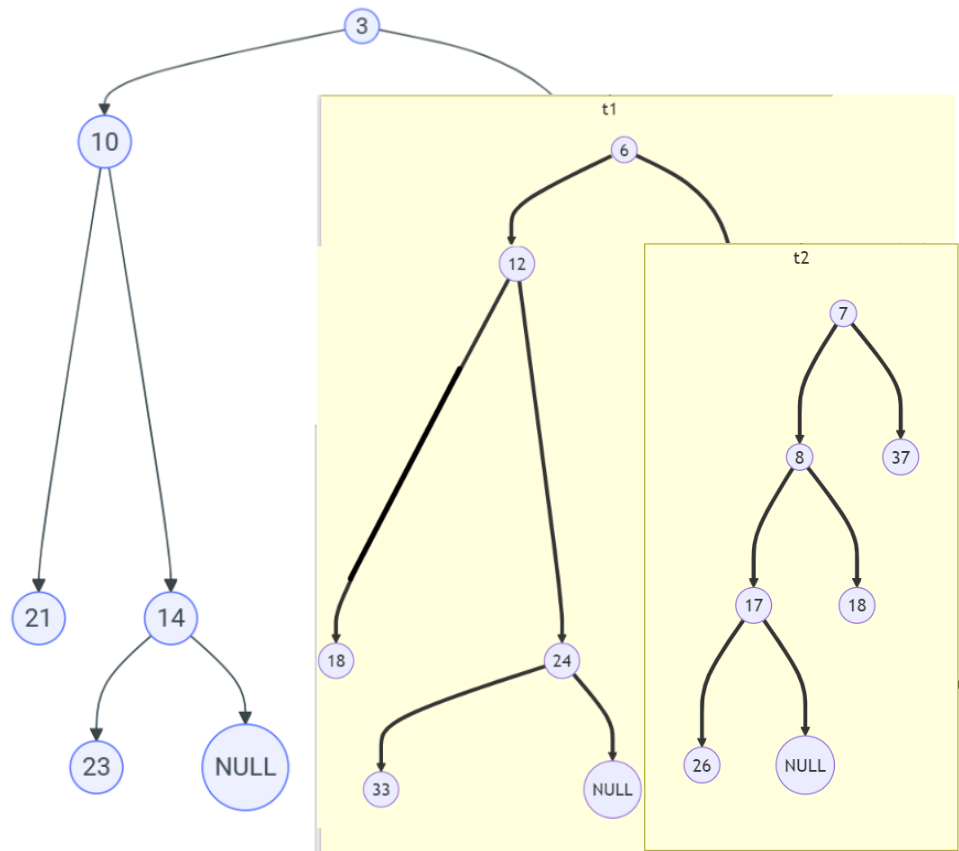

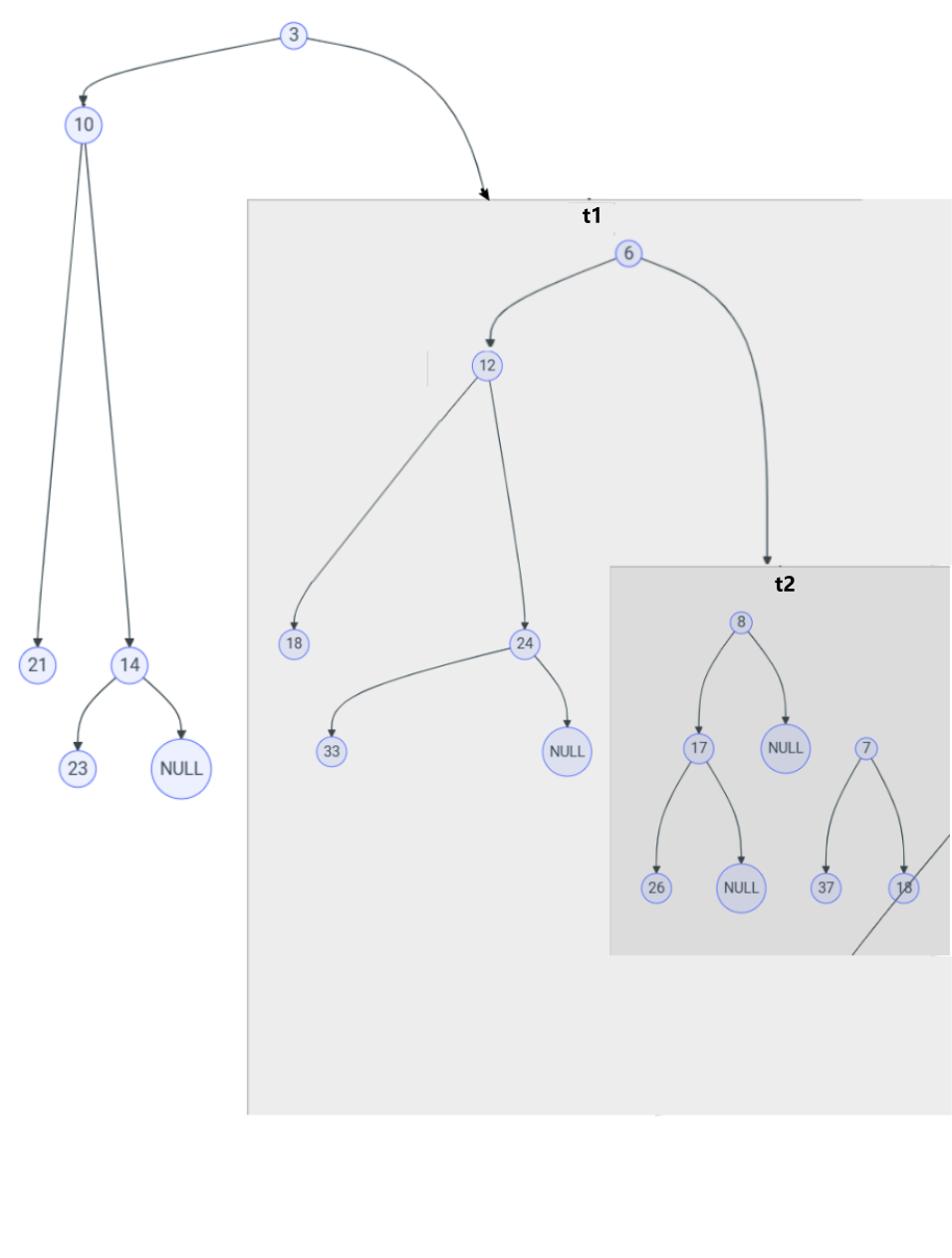

递归实现模拟

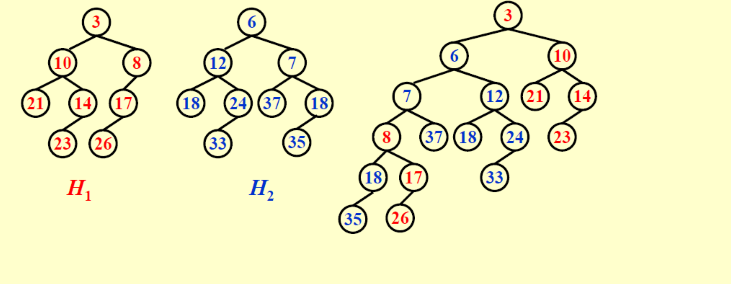

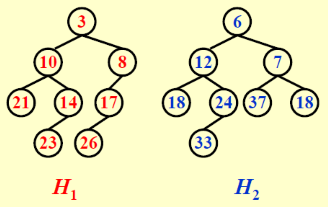

现有两个左式堆 H1，H2，模拟一下递归实现
graph TD;
a3((3))
a10((10))
a21((21))
a14((14))
a23((23))
a8((8))
a17((17))
a26((26))
a3 === a10
a3 === a8
a10 === a21
a10 === a14
a14 === a23
a14 === n1((NULL))
a8 === a17
a8 === n2((NULL))
a17 === a26
a17 === n3((NULL))H1
graph TD;
a6((6))
a12((12))
a18((18))
a24((24))
a33((33))
a7((7))
a37((37))
a182((18))
a6 === a12
a6 === a7
a12 === a18
a12 === a24
a24 === a33
a24 === n1((NULL))
a7 === a37
a7 === a182H2

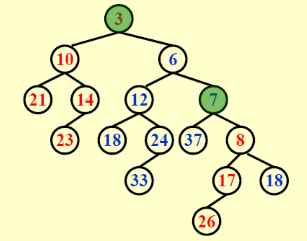

graph TD;
a3((3))
a10((10))
a21((21))
a14((14))
a23((23))
a8((8))
a37((37))
a17((17))
a26((26))
a6((6))
a18((18))
a24((24))
a33((33))
a3 === a10
a10 === a21
a10 === a14
a14 === a23
a14 === n1((NULL))
a12((12))
a7((7))
a182((18))
a8 === a17
a8 === a182
a17 === a26
a17 === n4((NULL))
a7 === a8
a7 === a37
a6 === a12
a6 === a7
a12 === a18
a12 === a24
a24 === a33
a24 === n2((NULL))
a3 === a6迭代实现¶
iterative version
- 根据 right paths 上结点值的大小 merge
- 如果需要的话交换左右孩子
PTA 4.3

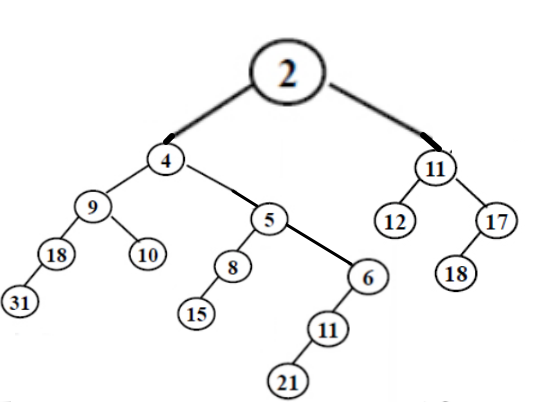

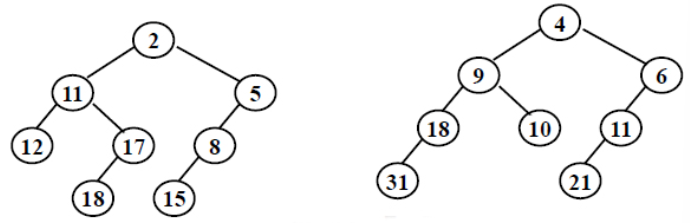

Merge the two leftist heaps in the following figure. Which one of the following statements is FALSE?
A. 2 is the root with 11 being its right child
B. the depths of 9 and 12 are the same
C. 21 is the deepest node with 11 being its parent
D. the null path length of 4 is less than that of 2
答案
D
\(Npl(4) = Npl(2) = 2\)
PTA 4.4
We can perform BuildHeap for leftist heaps by considering each element as a one-node leftist heap, placing all these heaps on a queue, and performing the following step: Until only one heap is on the queue, dequeue two heaps, merge them, and enqueue the result. Which one of the following statements is FALSE?
A. in the k-th run, \(\lceil \frac{N}{2^k}\rceil\) leftist heaps are formed, each contains \(2^k\) nodes
B. the worst case is when \(N=2^K\) for some integer K
C. the time complexity \(T(N) = O(\frac{N}{2}\log 2^0 + \frac{N}{2^2}\log 2^1 + \frac{N}{2^3}\log 2^2 + ··· + \frac{N}{2^K}\log 2^{K - 1})\) for some integer K so that \(N = 2 ^ K\)
D. the worst case time complexity of this algorithm is \(\Theta(N\log N)\)
答案
D
可以画出 \(N = 4,\ N = 5\) 的情况来想
A 选项：
每次从 queue 中 dequeue 出所有 heap，两两 merge，再 enqueue 进 queue 中。那么第 k 次完成后，会有 \(\lceil \frac{N}{2^k}\rceil\) 个新 heap 形成，每个新 heap 中有 \(2^k\) 个结点
B 选项：
最坏情况就是 \(N=2^K\)，每次都会取出所有 heap
C 选项：
这么整齐的式子肯定是 \(N = 2^K\)
第 k 次操作，有 \(\dfrac{N}{2^{k -1}}\) 个结点需要 merge，需要 merge \(\dfrac{N}{2^k}\) 次。这些 heap 当中，每个里面都有 \(2 ^ {k-1}\) 个结点，所以 merge 一次需要 \(T = O(\log 2^{k-1})\)，那么 merge \(\dfrac{N}{2^k}\) 次，\(T = O(\frac{N}{2^k} \log 2^{k-1})\)。再累加起来就是 C 选项中的式子
D 选项：
根据 C 选项：
两式相减：
由 \(N=2^K\)：
D 选项错误
deletemin¶
- 删除根结点
- merge 两个子树
2 Skew Heaps¶
斜堆
PTA 4.1
The right path of a skew heap can be arbitrarily long.
T
F
答案
T
不是很懂，我的理解是新东西进去会放在左子树上，而左子树上的东西总会交换到右子树上，所以 right path 任意长
merge¶
根据 right paths 上的结点值的大小进行 merge，但是每次 merge 要交换左右孩子，除了 right paths 上值最大的那个结点
PTA 4.6

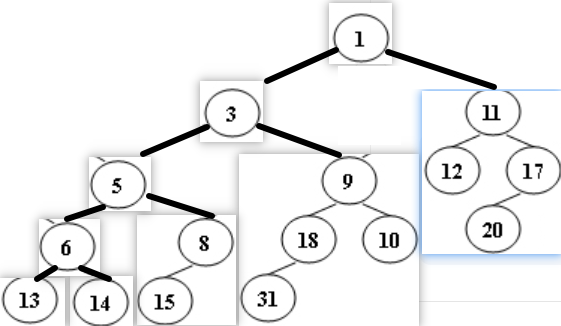

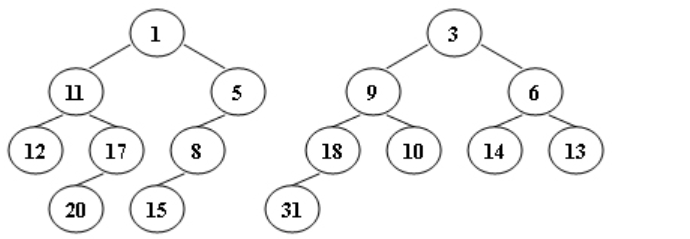

Merge the two skew heaps in the following figure. Which one of the following statements is FALSE?
A. 15 is the right child of 8
B. 14 is the right child of 6
C. 1 is the root
D. 9 is the right child of 3
答案
A

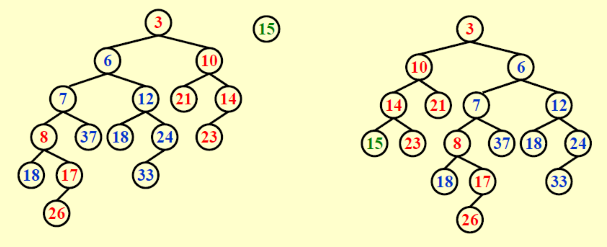

insert¶
把那个要 insert 进来的结点当作另一个 Heap，相当于做一次 merge
PTA 4.2

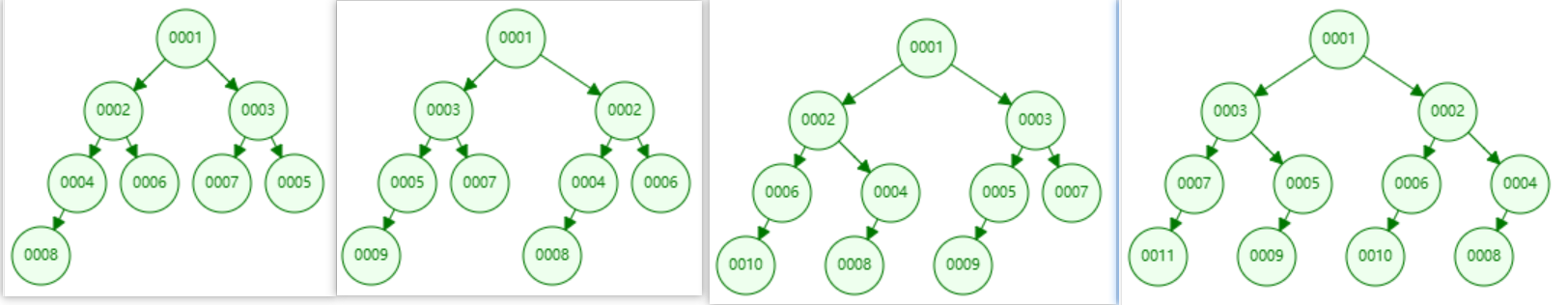

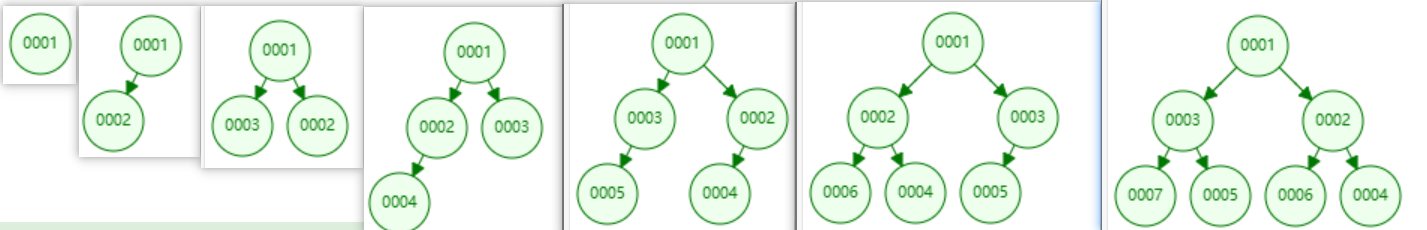

The result of inserting keys 1 to \(2^{k−1}\) for any \(k>4\) in order into an initially empty skew heap is always a full binary tree.
T
F
答案
T
试一试发现确实是这样，当作一个小结论记住吧
PTA 4.5

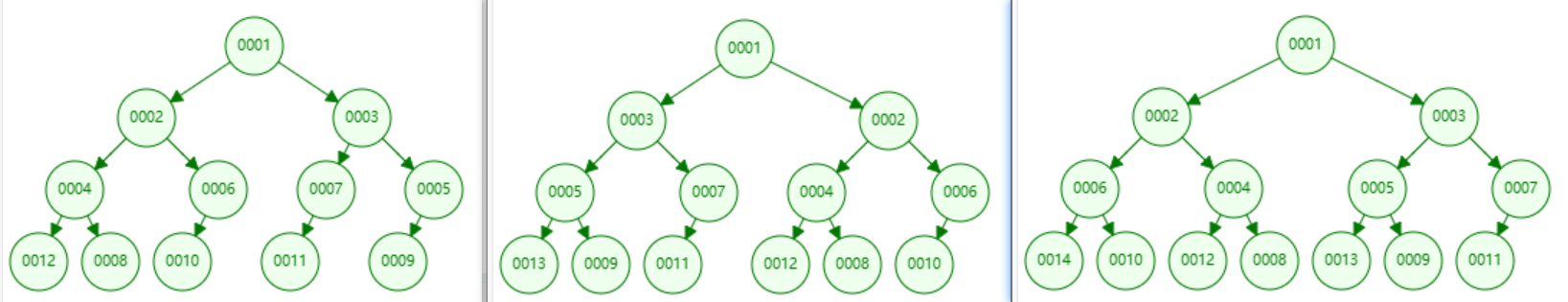

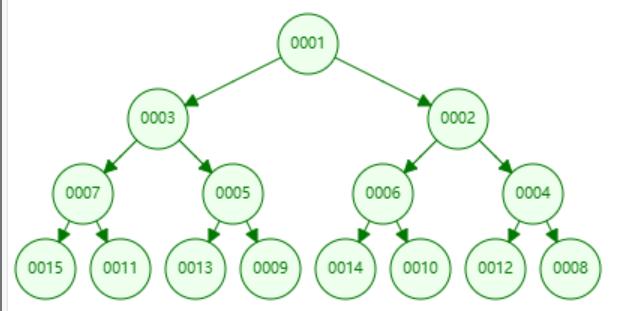

Insert keys 1 to 15 in order into an initially empty skew heap. Which one of the following statements is FALSE?
A. the resulting tree is a complete binary tree
B. there are 6 leaf nodes
C. 6 is the left child of 2
D. 11 is the right child of 7
摊还分析¶
定义：如果结点 p 右子树结点数量大于等于 p 后代数量（包括 p 自己）的一半（即 p 右子树结点数量大于 p 左子树结点数量），称 p 是 heavy 的。否则称 p 是 light 的
